Medical Waste Incinerators for Clinics and Small Hospitals

HICLOVER Solution for Fighting COVID-19, Medical Waste Incinerator

Tel:  +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: http://www.hiclover.com/

Nanjing Clover Medical Technology Co.,Ltd.

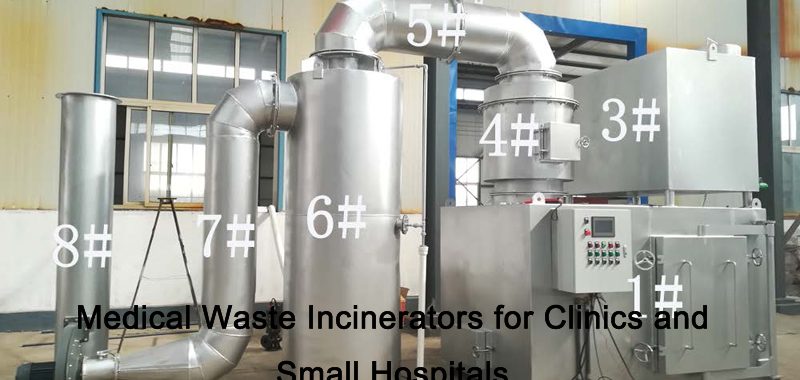

Item

Serie No.

Part Name

Packing List

1#

Incinerator Mainbody



2#

Oil Tank(Deposit)



3#

Oil Tank(Daily)



4#

Chimney(Vertical,High Temperature)



5#

Chimney(Horizontal,High Temperature)



6#

Wet Scrubber



7#

Chimney(S shape)



8#

Chimney(Below)



9#

Chimney(Top)

Hospital Incinerators for Medical Waste Destruction

SN

 Item

Specification

1

Model

TS100

2

Burning Rate

Ave.50-100Kgs/Hour

3

Feeding Capacity

Ave.200Kgs/Feeding

4

Primary Chamber

1000 Liters

5

Secondary Chamber

540 Liters

6

Chimney

Yes

7

Wet Scrubber

Yes

8

Wet Scrubber Parameter

Dia. 100cm Hight 2500cm

9

Feeding Model

Manual

10

Power

380V 3P 50Hz

11

Power

6.0 Kw

12

Fuel Type

Diesel Oil

13

Burner

Italy

14

Oil Consumption (Diesel Oil)

Average 20.4 Kgs/Hour

15

Internal Dimensions Primary Chamber

120 x 100 x 90 cm

16

External Dimensions (Main Body)

270 x 190 x 170cm

17

Temperature Monitor

Yes

18

Oil Tank (Daily)

1.8M3

19

Oil Tank(Deposit) Parameter

10M3, Dia. 200cm Length 3500cm

20

Feeding Door

80 x 60cm

21

Chimney

6.0 M

22

Chimney Material

S.Steel

23

Weight

Ave.8500Kgs

24

1st. Chamber Temperature

800–1000

25

2nd. Chamber Temperature

1000-1200

26

Residency Time

2Sec.
